Introduction
JUMO smartWARE Evaluation

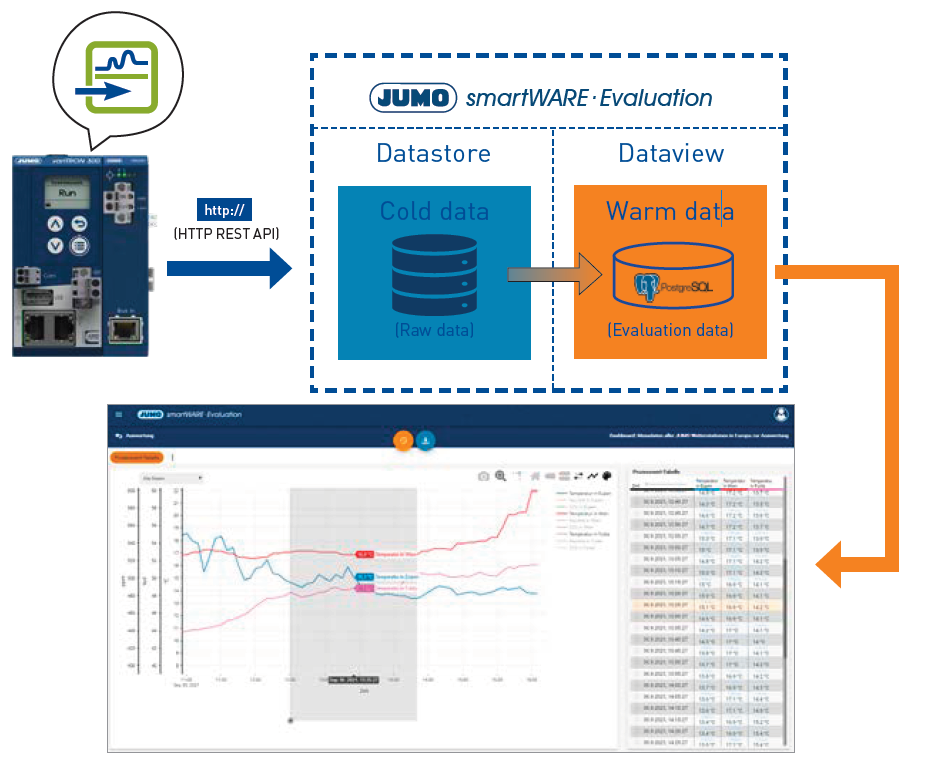

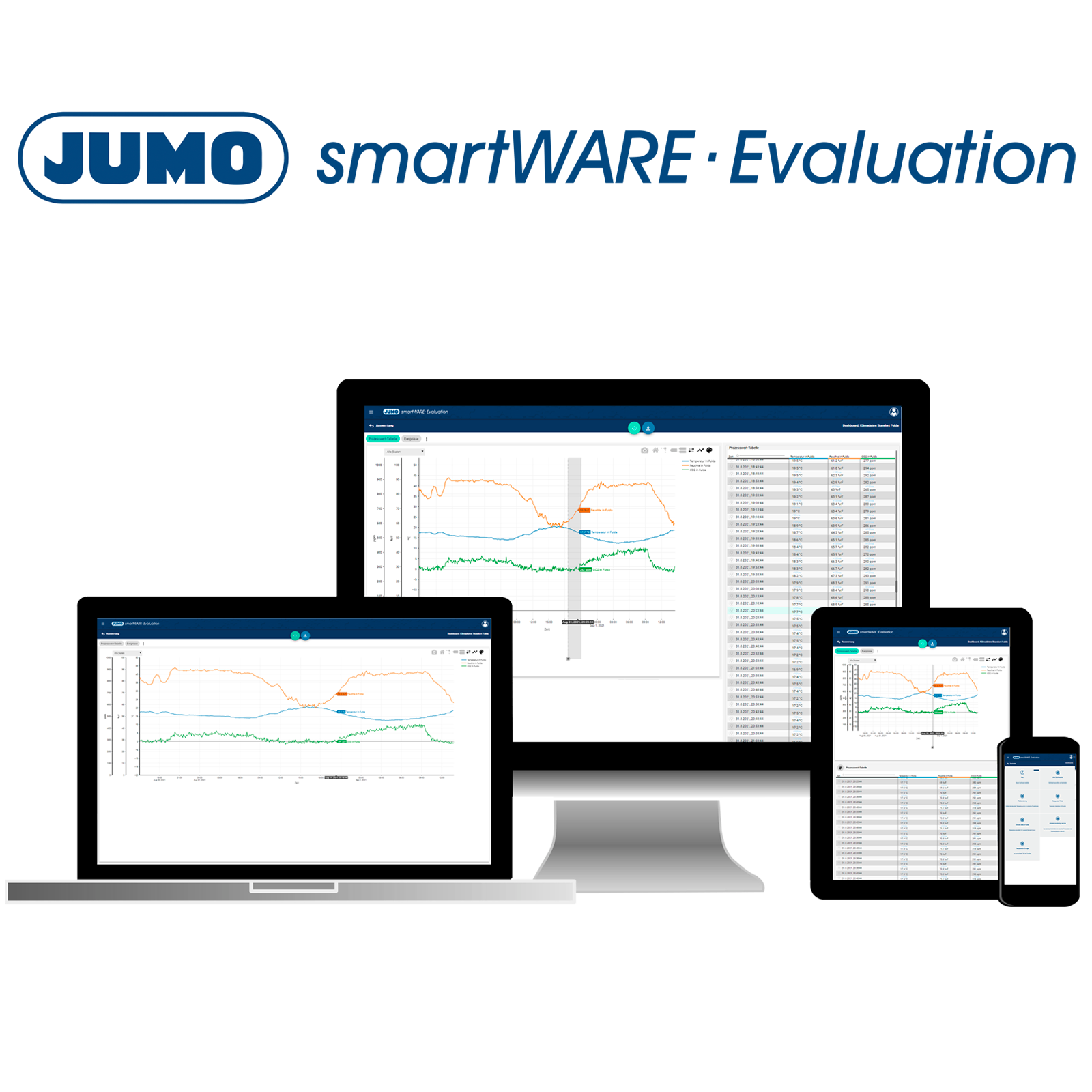

JUMO smartWARE Evaluation stores the process data from distributed systems, which is recorded by JUMO variTRON devices. The collected data can be viewed and analyzed using a web browser. Thanks to Docker technology, JUMO smartWARE Evaluation can be installed on a desktop computer, a server in a proprietary network, or a cloud server. A tamper detection feature ensures data security.
Recording and evaluation: JUMO smartWARE Evaluation allows the bundled evaluation of process data that is recorded by JUMO variTRON devices in distributed systems. JUMO variTRON devices can acquire process data from their inputs and program variables (CODESYS data) and also from their fieldbus systems, and transfer this data to JUMO smartWARE Evaluation.
Run anywhere: Thanks to Docker technology, installation and operation are supported on desktop, server or cloud.
Data diode: JUMO variTRON devices transmit process data to the JUMO smartWARE Evaluation Datastore via HTTP and are protected against unauthorized access.
Easy integration: For transmission purposes, JUMO variTRON accesses the Datastore via push technology. This simplifies the network integration of JUMO smartWARE Evaluation, e.g. through simple firewall administration.
Tamper detection: JUMO smartWARE Evaluation receives the process data from JUMO variTRON devices in the Datastore and verifies their authenticity using digital certificates. This ensures that the data is unchanged from the day it is stored.
Data storage in the Datastore: All data transferred from JUMO variTRON devices to JUMO smartWARE Evaluation is stored in the Datastore as Cold Data, and the specified time range is kept available as Warm Data for rapid evaluation in Dataview.
Scalable license model: Depending on the license, Dataview can access up to 1500 signals in the Warm Data area, which can be viewed and evaluated via web browser (see order details).
Seamless recording: In the event of a network failure, JUMO variTRON devices buffer the process data until it is restored. This prevents recording gaps in the Datastore.
