"Go to" Function

With the help of the "Going to" function, it is possible to jump to a user defined value within the process value table.

The "Going to" function was configured to search only in "visible" channels. This means that hidden channels are not considered.

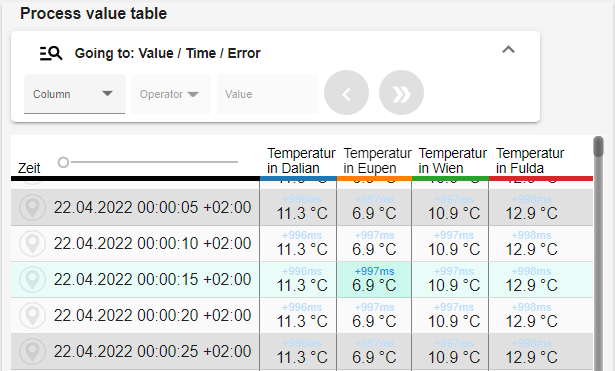

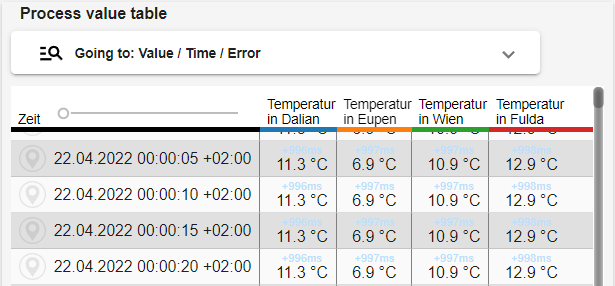

Clicking the panel Going to: Value / Time / Error opens the "Go to" function.

Initially, only the "Column" field is active. The following columns can be selected there:

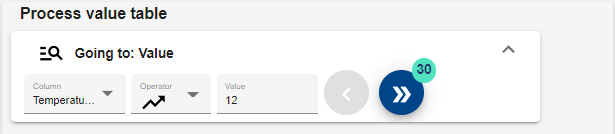

The title of the "Going to" function adjusts to the selected column.

If the "Going to" panel is closed, the function remembers the set values and these can be used again when reopening.

Channels that are hidden via the paint box icon are neither visible in the process value table nor in the "Go to" function!

Operator	Definition
Equal to	Hit only if there is a matching date
Approximate to	Hit if there is a matching date; if there is no matching date, the next following date is selected
Cycle change	Hit if period/cycle changes → e.g.: initially timestamps every second, then only every 30 seconds

Operator
Error search	Error codes are displayed

Operator	Definition
Equal to	Hit only if there is a matching value
Over/underrun	Hit if the value exceeds/falls below
Value overrun	Hit if the value is exceeded
Value underrun	Hit if the value falls below

Operator	Definition
Equal to	Hit only if there is a matching value
Value overrun	Hit if the value is exceeded
Value underrun	Hit if the value falls below
