By selecting the "Switch Schedule" button, you can edit a Switch Schedule that was created earlier. A new Switch Schedule is created via the Plus button.

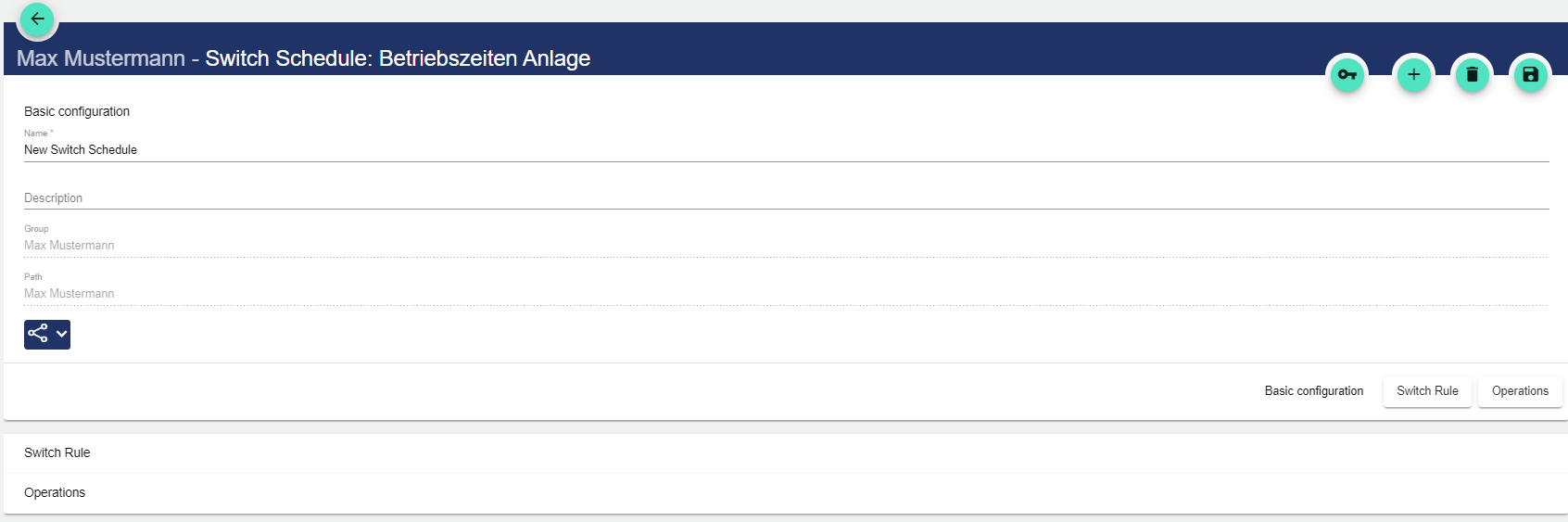

Assign the name of the Switch Schedule in the Basic Configuration. The Description field is optional. The "Group" field shows the Group in which this Switch Schedule was created. The path is generated automatically by the system.
Optionally, you can select the desired icon from the menu.

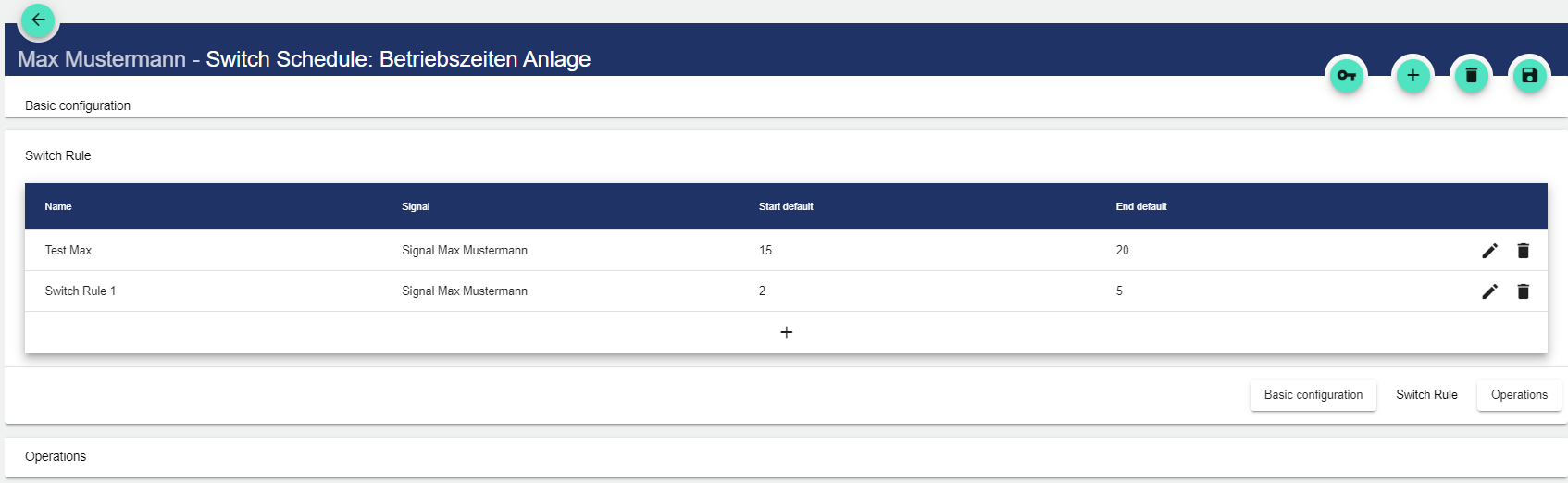

The "Switching Rules" field is used to specify ranges for default values.
A new Switching Rule is created via the Plus button.

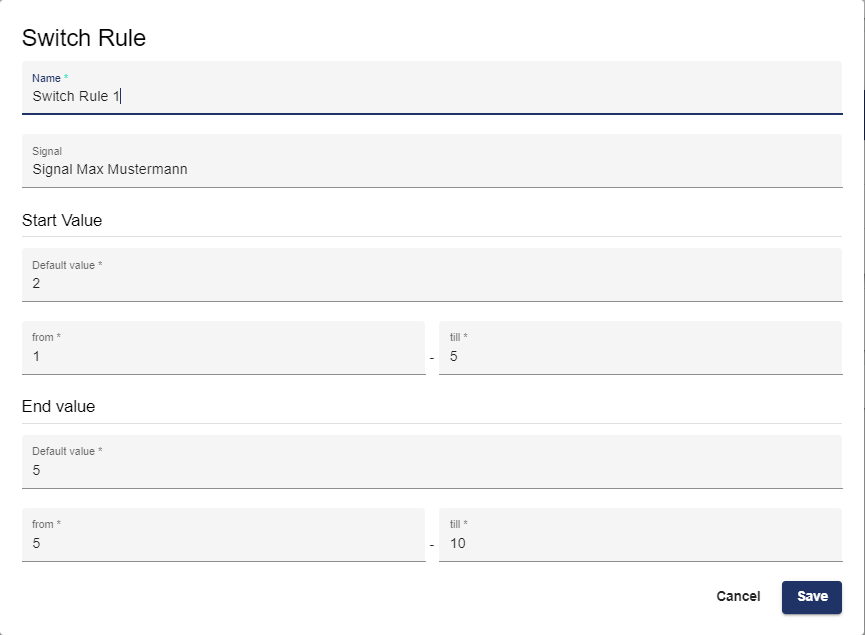

Assign a name to the rule.

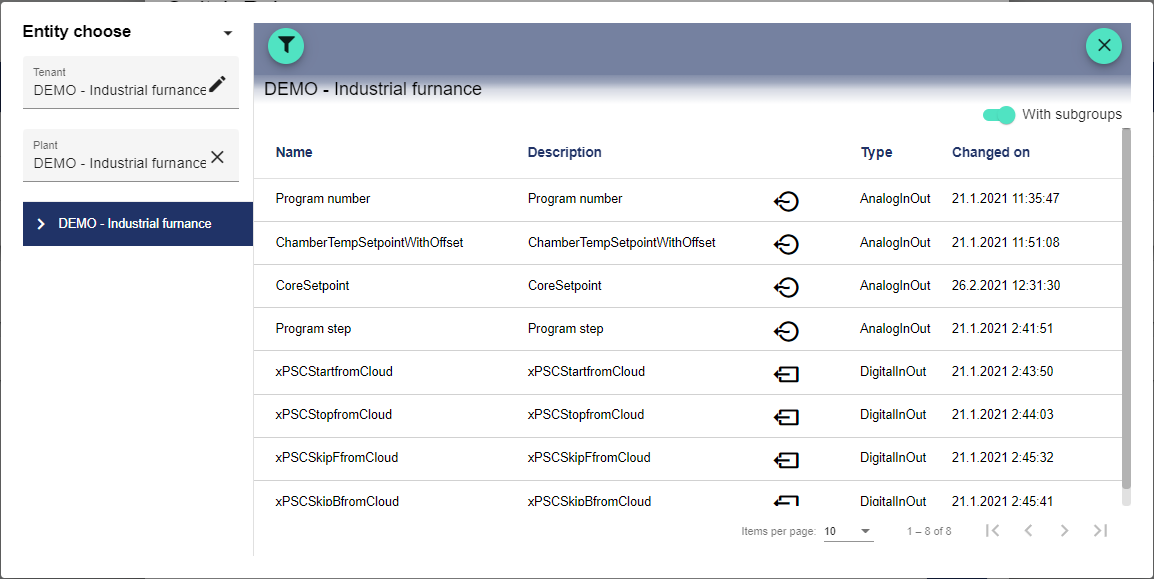

In the "Signal" field, another window opens in which a previously created signal can be selected.
Default values are entered for the start and end values. The range for the start and end values can be specified in the fields below. Based on this setting, the range in which the start and end values can be set for the switching operations is defined.

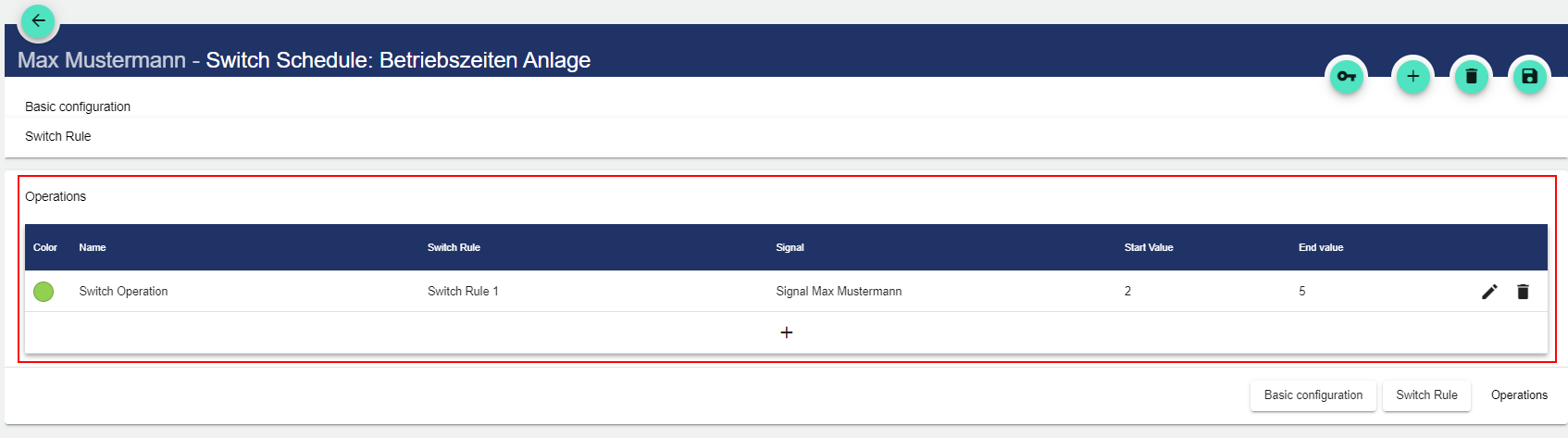

In the "Operations" field, a switching rule defines an action that occurs when the operation is activated.

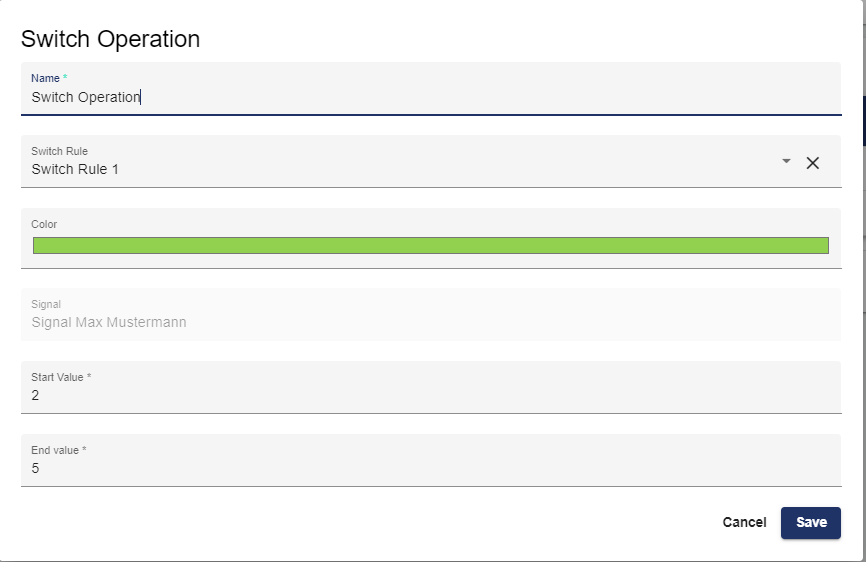

A new switching operation is created via the Plus button. Assign a name to the operation. In the "Switching Rule" field, you can select the previously created switching rule as a template.
In the "Signal" field, another window opens in which a previously created signal can be selected. This only works if switching rules have not been stored.
Enter the start and end values. These can only be set between the defined limits and are only freely selectable if no switching rule has been created.
Operations and switching rules are only available after saving the Basic Configuration.
The AuditLog is a change log that transparently shows how the object was changed. For some objects, it also shows which target values were set by a specific person. Power users can use the button on the right-hand side to get a detailed view of exactly what has been changed in the configuration.
